Standard rounded-edge sink units without bowl cladding (PA range)

Standard rounded-edge sink units without bowl cladding are designed for professional kitchens and Grande Cuisine projects requiring a robust, open and easily accessible washing station. Thanks to their AISI 304L stainless steel top, rounded edges and demountable base, they provide a hygienic, functional solution suited to intensive use.

Technical specifications

• AISI 304L stainless steel construction: 15/10e stainless steel top with anti-drip edges.

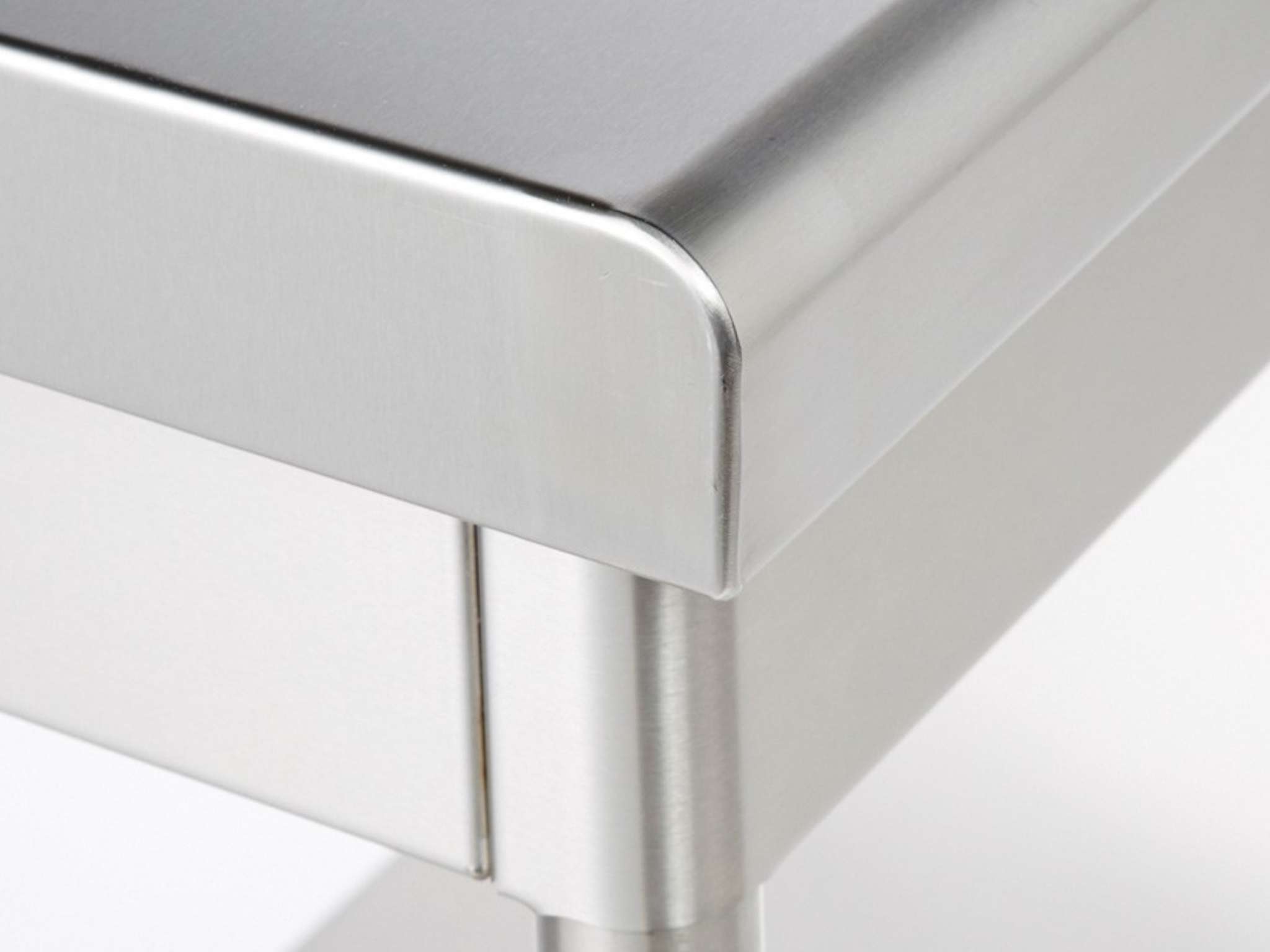

• Rounded edges: 20 mm front radius, 60 mm downstand edge and welded corners.

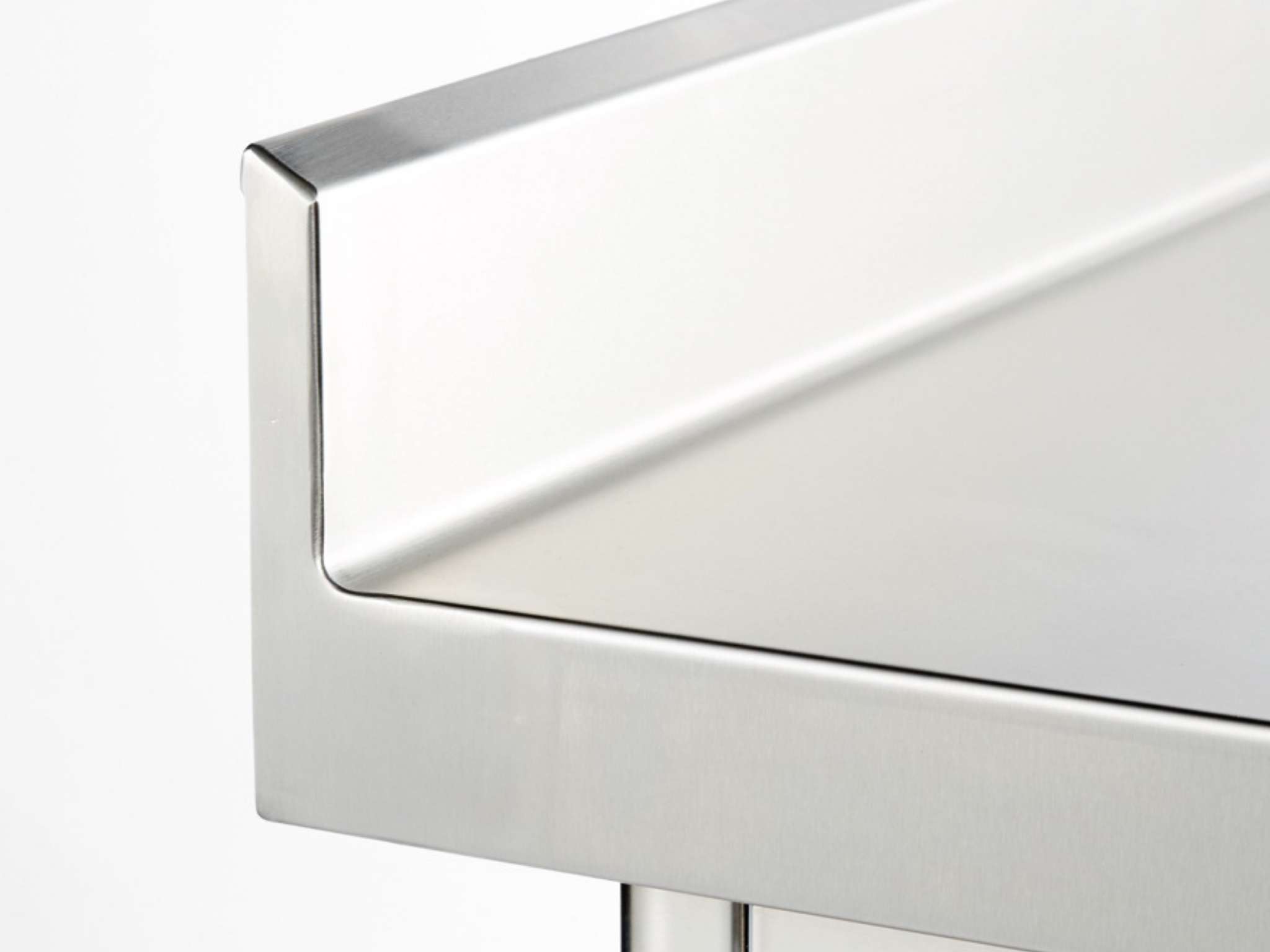

• Rear backsplash: 100 x 20 mm rear backsplash inclined at 30°, closed at both ends, with 10 mm radius at the base.
• Drainer: ribbed drainer depending on configuration.
• Tap fitting: Ø31 mm tap hole.
• Bowl equipment: sink unit supplied with waste fitting, simple overflow tube and plastic trap.
• Base: demountable Ø38 mm round legs, fitted with ABS adjustable feet adjustable over 30 mm.
• Height: 900 mm height.
• Width: 700 mm width.
• Open version: sink unit without bowl cladding, supplied demounted.
• Rounded lower shelf: 15/10e rounded lower shelf available as an option, depending on the compatible EGA reference.
• Slatted lower shelf: slatted lower shelf available as an option depending on compatible length.
• 500 x 500 x 300 mm bowls: configurations from 700 to 2100 mm, references PA107 to PA221.
• 600 x 500 x 300 mm bowls: configurations from 800 to 2400 mm, references PA108 to PA224.
• Available configurations: 1 bowl, 1 bowl with right-hand or left-hand drainer, 2 bowls, 2 bowls with right-hand or left-hand drainer, or 2 bowls with 2 drainers depending on model.
• Weight: from 26 to 68 kg depending on dimensions and configuration.

Product benefits

• Direct under-bowl access: the absence of bowl cladding keeps the lower area open for easier access and maintenance.
• Grande Cuisine finish: AISI 304L stainless steel top, rounded edges and welded corners for a design suited to intensive use.
• Easier hygiene: the front radius, 60 mm downstand edge and inclined backsplash help limit retention areas.
• Fast assembly: demountable Turn’Fix legs can be assembled without tools.
• Scalable storage: rounded or slatted lower shelf available depending on workstation needs.

Available options

• Rounded lower shelves for 700 mm width (EGA707 to EGA724): compatible shelves depending on sink unit length.
• Slatted lower shelves for 700 mm width (EGC710 to EGC722): all-stainless steel shelves made from 35 x 35 mm tube, depending on compatible length.
• 4 stainless steel adjustable feet (…/X): option to be added to the end of the reference to replace ABS adjustable feet.
• 4 stainless steel Ø125 mm castors, including 2 with brakes (…/RX): option to be added to the end of the reference.
• 4 polyamide Ø125 mm castors, including 2 with brakes (…/RP): option to be added to the end of the reference.
• Semi-mobile polyamide version (…/SMP): 2 polyamide yoke castors without brakes and 2 ABS adjustable feet.
• Semi-mobile stainless steel version (…/SMX): 2 stainless steel yoke castors without brakes and 2 stainless steel adjustable feet.
• Special-height legs (SPHT): option for worktop height up to 1050 mm maximum.
• Lower side and longitudinal braces (TRAV): U- or H-shaped braces, to be specified when ordering.
• Welding of the 4 legs onto the rails (SPSOUD): reinforcement option; for a 6-leg sink unit, multiply the option by 1.5.
• Rear backsplash closure (TFD): option to close the rear of the backsplash.
• Right-hand side backsplash for 700 mm width (TTDR710AD): added backsplash, welded and siliconed, rear not closed.
• Left-hand side backsplash for 700 mm width (TTDR710AG): added backsplash, welded and siliconed, rear not closed.
• Smooth drainer (POPT17): smooth drainer finish replacing the ribbed drainer.
• No tap hole (SPST): option for sink unit supplied without tap hole.
• Two tap holes (SPBT): option for sink unit supplied with 2 tap holes.
• Chrome cover cap (CT50): chrome cover cap for tap hole.
