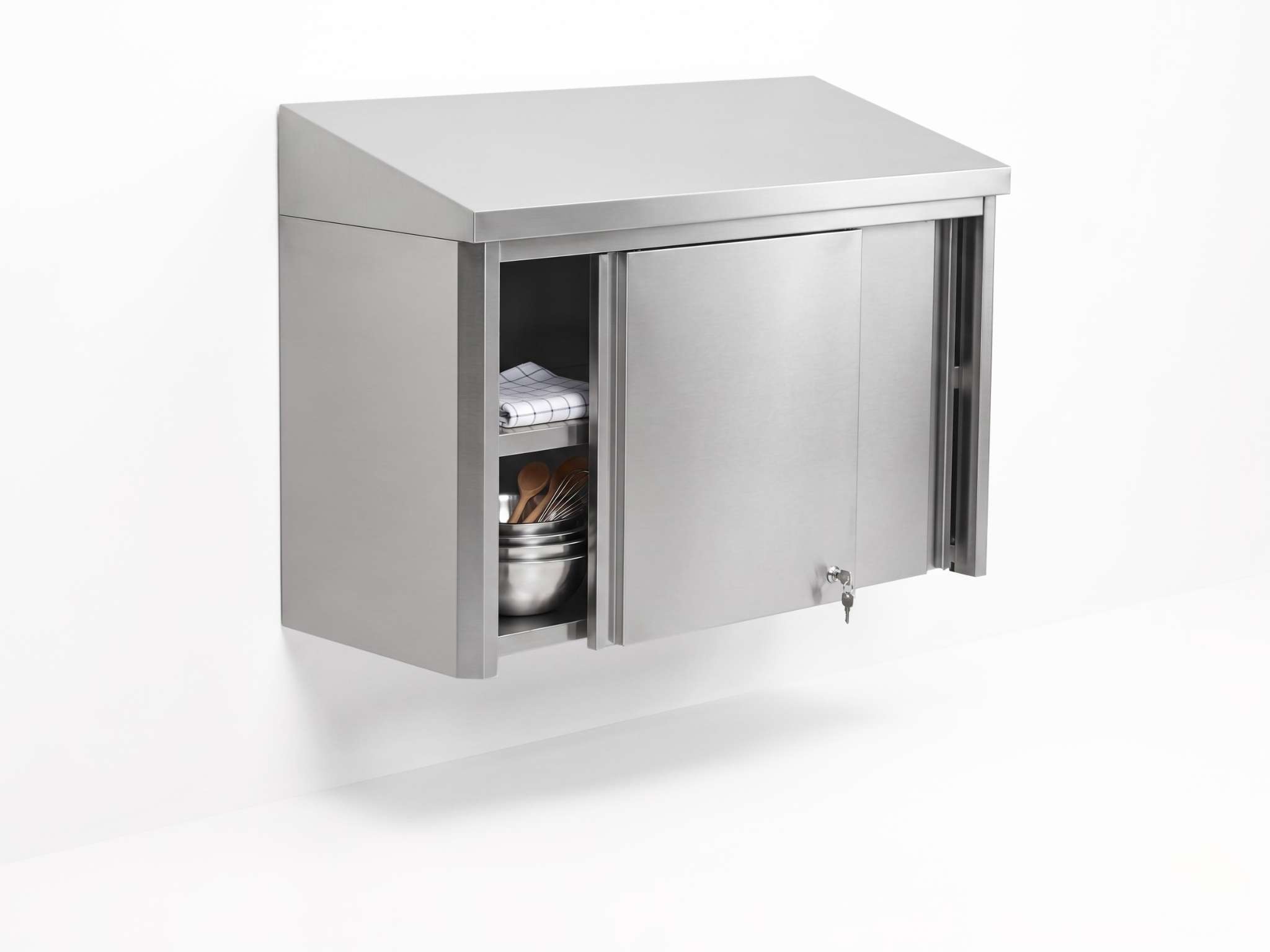

Stainless steel wall cupboard | Standard
SKU: MM1
Category: Round edged storage furniture
Standard rounded-edge wall cupboards for large commercial kitchens (MM2 and MM3 range)
Standard rounded-edge wall cupboards provide suspended stainless steel storage for large commercial kitchens. Their sloping top, suspended sliding doors and adjustable shelf help organise equipment while keeping floor space clear.
Technical specifications
- Construction: stainless steel wall cupboard.
- Doors: 2 suspended sliding doors with integrated handles.
- Closure: lock fitted as standard.
- Internal storage: 1 height-adjustable shelf.
- Load capacity: 50 kg evenly distributed per shelf.
- Installation: cupboard supplied assembled with 2 wall-mounting brackets.
- Top: sloping top with welded corners.
- Hygiene: smooth top and ceiling, inclined at 15°.
- Dimensions: height 710 mm, depth 407 mm, available lengths from 1000 to 2200 mm.
- Non-double-skinned version: references MM210, MM212, MM214, MM215, MM216, MM218, MM220 and MM222.
- Version with double-skinned doors and side panels: references MM310, MM312, MM314, MM315, MM316, MM318, MM320 and MM322.
- Weight: from 32 to 60 kg for non-double-skinned versions, and from 37 to 71 kg for versions with double-skinned doors and side panels.
Product benefits
- Suspended storage: wall-mounted solution designed to keep floor space clear in professional kitchens.
- Easier cleaning: suspended sliding doors with no lower rail to limit deposit areas.
- Improved hygiene: sloping top, smooth upper surface and 15° inclined ceiling.
- Side panel rigidity: folded side design helps reinforce the side panels.
- Practical safety: flattened-fold finish to reduce sharp edges.
- Choice of finish: non-double-skinned version or version with double-skinned doors and side panels depending on the required equipment level.
Available options
- Doorless version (…/SP): doors can be removed by adding SP to the end of the reference.
- Made-to-measure length: available from 800 to 2200 mm.
- GN 1/3 stainless steel container (MMSBAC): 100 mm deep container supplied with a set of 2 runners, to be fixed under the cupboard using the supplied template.
- LED lighting package (MMLED): LED lighting under MM2/MM3 cupboards, to be ordered at the same time as the cupboard; later installation is not possible.
- MMSBAC / MMLED incompatibility: the GN 1/3 stainless steel container and LED lighting options are not compatible with each other.
- Coloured doors (MEU-COLOR): epoxy coating with over 200 RAL colours available, in matt or gloss finish.
MM210 MM212 MM214 MM215 MM216 MM218 MM220 MM222 MM310 MM312 MM314 MM315 MM316 MM318 MM320 MM322
