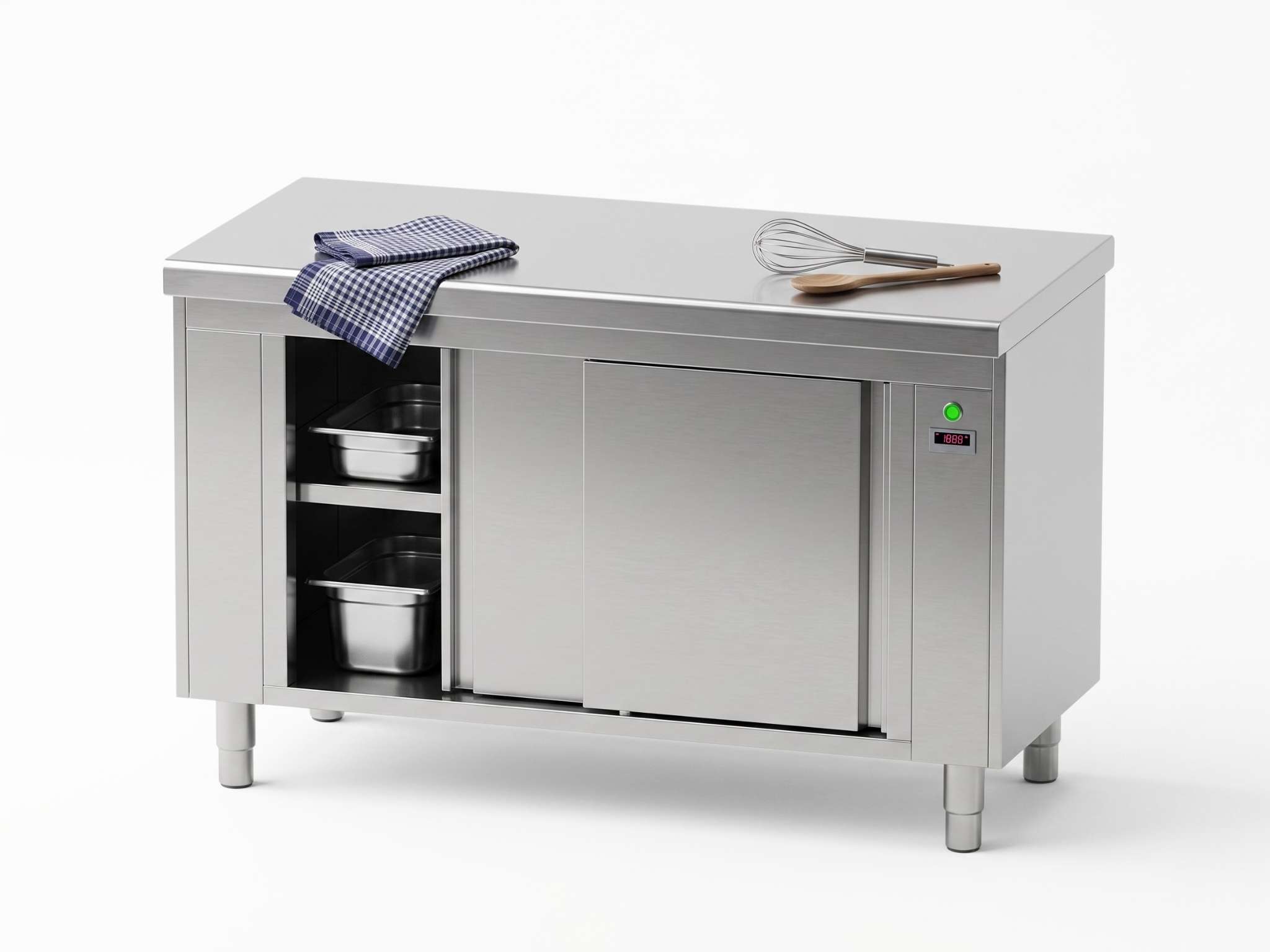

Ventilated rounded-edge hot cupboards for large commercial kitchens (MEC and MED range)

Ventilated rounded-edge hot cupboards are designed to hold food at temperature and warm plates or dishes in large commercial kitchens. Their internal ventilated hot-air heating provides even air circulation around the shelves.

Technical specifications

• Construction: all-stainless steel cupboard.
• Function: food temperature holding at 65°C core temperature, plate and dish warming.
• Heating: internal ventilated hot-air heating, 2000 W.
• Power supply: 230 V single phase, with 400 V three-phase + neutral power supply available as an option.
• Control: electronic temperature control with digital display.
• Safety: integrated fuse holder protection and high-temperature safety cut-out.
• Worktop: reinforced AISI 304L stainless steel top, 15/10e thickness.
• Side panels: double-skinned side panels insulated with rock wool.
• Intermediate shelf: shelf with downturned edge and safety return, with 30 mm peripheral clearance for air circulation.
• Doors: double-skinned insulated suspended sliding doors on stainless steel rail, with no lower rail and integrated handles.
• Door removal: doors removable without tools.
• Base: supplied on composite feet, with stainless steel feet available as an option.
• Plinth: reinforced base with round adjustable feet for 850 or 900 mm height.
• Dimensions: height 900 mm, width 700 mm, available lengths from 1200 to 2000 mm.
• Available versions: central version (MEC) or version with backsplash (MED).
• Central references: MEC212, MEC214, MEC216, MEC218 and MEC220.
• References with backsplash: MED212, MED214, MED216, MED218 and MED220.
• Weight: from 89 to 121 kg depending on length.

Product benefits

• Double convection: hot air circulates around the shelves for even heating.
• Temperature holding: designed for food, plate and dish warming before service.
• Easier cleaning: smooth, obstacle-free storage levels and suspended doors with no lower rail.
• Improved insulation: double-skinned insulated doors and side panels help limit heat loss.
• Safe operation: electronic control, digital display and integrated high-temperature cut-out.
• Choice of layout: central or backsplash version depending on workstation configuration.

Available options

• 4 stainless steel feet (…/X): option to be added to the end of the reference to replace composite feet.
• 4 stainless steel yoke castors (…/RX): option with 4 Ø125 mm stainless steel yoke castors, including 2 with brakes, to be added to the end of the reference.
• 20/10e top (MOPT203): extra cost for a 20/10e thickness top, per linear metre.
• Heated top (MOPT204): fixed-cost heated top option, incompatible with ECR2 and ECR4 heated shelves.
• Three-phase power supply (MOPT205): option for three-phase power supply.
• Pass-through version (MOPT208): version with 4 sliding doors, available only with MEC2 references.
• Reinforcement for ECR2 heated shelf (MOPT206): 20/10e top with stainless steel reinforcement for fitting a 2-post heated shelf.
• Reinforcement for ECR4 heated shelf (MOPT207): 20/10e top with stainless steel reinforcement for fitting a 4-post heated shelf.
• 4-post heated shelf (ECR4120 to ECR4200): 380 mm wide stainless steel shelf, 400 mm high, with 4 Ø38 mm stainless steel posts, protected ceramic infrared radiants and energy regulator.
• 2-post heated shelf (ECR2120 to ECR2200): 380 mm wide stainless steel shelf, 400 mm high, with 2 Ø50 mm stainless steel posts, protected ceramic infrared radiants and energy regulator.
