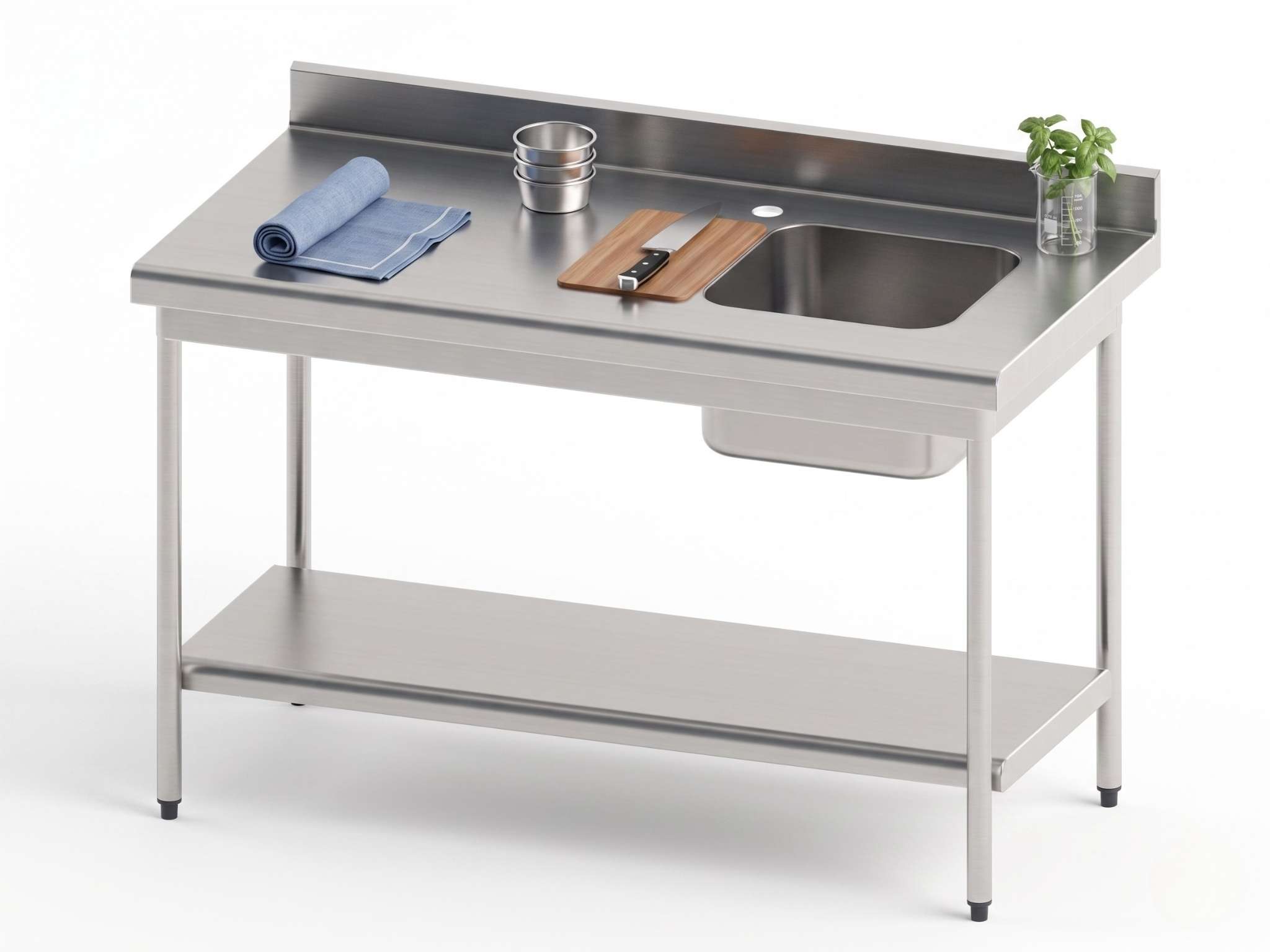

Standard rounded-edge chef’s tables (TAH range)

The standard rounded-edge chef’s tables are designed for professional kitchens requiring a stainless steel workstation with an integrated sink bowl. Thanks to their rounded-edge construction and AISI 304L stainless steel top, they meet the requirements of large-scale catering environments.

Technical specifications

• AISI 304L stainless steel top: 15/10 thickness AISI 304L stainless steel worktop, reinforced with a glued 19 mm water-repellent melamine panel.
• Rounded edges: welded corners, 20 mm front radius and 60 mm downstand for a finish suited to intensive professional use.
• Inclined backsplash (Refs TAH): 30° inclined backsplash, 100 x 20 mm, closed at the ends, with a 10 mm radius at the base.
• Integrated stainless steel sink bowl: welded stainless steel bowl measuring 400 x 400 x 250 mm.
• Tap hole: Ø 31 mm tap hole provided, with the option of a table without tap hole or with 2 tap holes according to the catalogue options.
• Drainage equipment included: supplied with waste fitting, simple overflow tube and plastic trap.
• Demountable base: Ø 38 mm stainless steel tube legs, demountable, with Turn’Fix system for fast tool-free assembly.
• Adjustment: ABS adjustable feet with 30 mm adjustment.
• Standard dimensions: 900 mm height, 700 mm width, available lengths from 700 to 2000 mm according to catalogue references.
• Sink bowl position: right-hand or left-hand bowl versions depending on the reference, excluding the TAH07 model listed as chef’s bowl.

Product benefits

• Complete workstation: stainless steel worktop with integrated sink bowl for professional kitchen preparation.
• Optimised hygiene: rounded edges, welded corners and AISI 304L stainless steel top.
• Fast assembly: Turn’Fix legs can be fitted without tools, making installation easier.
• Flexible layout: right-hand or left-hand sink bowl versions to suit installation needs.
• Additional storage: tool-free clip-on rounded lower shelf available as an option.

Available options

• Rounded lower shelf (EGA707, EGA712, EGA714, EGA715, EGA716, EGA718, EGA720): tool-free clip-on rounded lower shelf, depending on table length.
• Stainless steel adjustable feet (…/X): option to add 4 stainless steel adjustable feet to the reference.
• Stainless steel castors (…/RX): option to add 4 stainless steel Ø 125 mm castors, including 2 with brakes, to the reference.
• Polyamide castors (…/RP): option to add 4 polyamide Ø 125 mm castors, including 2 with brakes, to the reference.
• Polyamide semi-mobile option (…/SMP): option to add 2 polyamide castors without brakes and 2 ABS adjustable feet.
• Stainless steel semi-mobile option (…/SMX): option to add 2 stainless steel castors without brakes and 2 stainless steel adjustable feet.
• Special-height legs (…/SPHT): option available for standard tables, for worktop height up to 1050 mm maximum; the required equipment height must be specified when ordering.
• Lower crossbars (TRAV): lower side and longitudinal crossbars, U-shaped or H-shaped to be specified when ordering.
• Welded legs (SPSOUD): option to weld the 4 legs to the support rails.
• Three-sided stainless steel cladding (TOP14): sink bowl cover available for standard chef’s table on 4 legs.
• Femoral control (CEAUV): option available only for chef’s table with bowl cover option; includes a control front with pre-mixer, swan neck and push-button tap.
• Rear backsplash closure (TFD): rear backsplash closure available as an option.
• Right add-on side backsplash for 700 mm width (TTDR710AD): welded and siliconed add-on side backsplash, open at the rear.
• Left add-on side backsplash for 700 mm width (TTDR710AG): welded and siliconed add-on side backsplash, open at the rear.
• Rear stops (TTBA2): 2 AISI 304L stainless steel tube rear stops, with black ABS end caps and 35 mm space between backsplash and wall.
• Corner stops (TTCPC4): set of 4 rubber corner stops fitted to the table corners. For tables with backsplash, option TFD must also be provided.
• Rubber scraper/flap (OPBAV): rubber scraper or flap fixed to the table for clearing plates.
• Table without tap hole (SPST): configuration without tap hole available as an option.
• Table with 2 tap holes (SPBT): configuration with 2 tap holes available as an option.
• Chrome tap hole cover (CT50): chrome tap hole cover available as an accessory for the tap hole.
