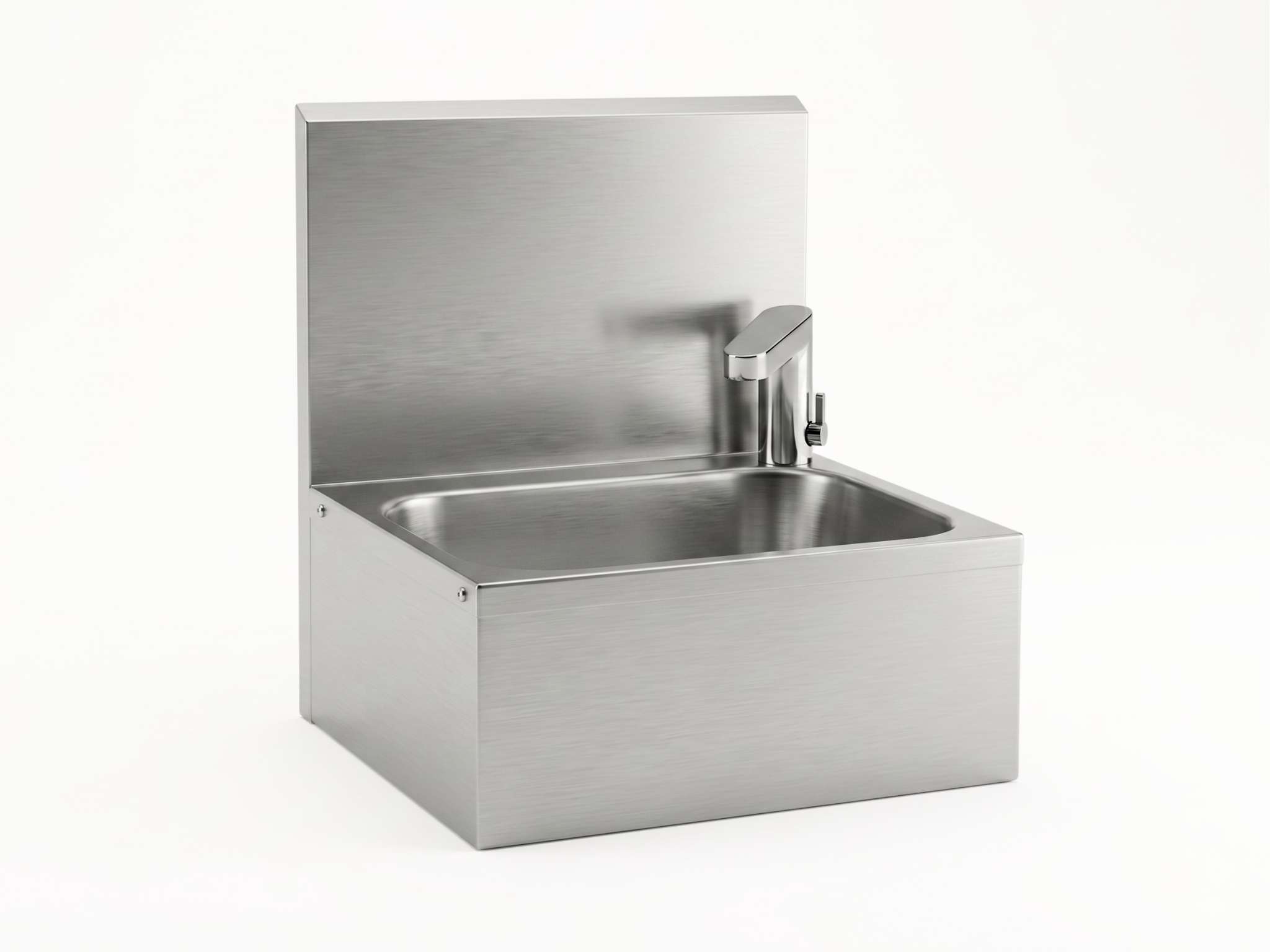

Electronic hand wash basins (LMASWE range)

Electronic hand wash basins are designed for hygiene areas in professional kitchens, preparation areas and production spaces. Thanks to their touch-free control and pressed rectangular bowl, they support hygiene while remaining simple to use every day.

Technical specifications

• AISI 304L stainless steel construction: AISI 304L stainless steel design suited to the hygiene requirements of professional environments.
• Electronic control: electronic sensor operation to reduce direct contact with the tapware.
• Inclined backsplash (Refs LMASWENF-LMASWES): 270 mm high backsplash, inclined at 30°.
• Pressed rectangular bowl: bowl measuring 400 x 250 x 140 mm.
• Integrated mixer: mixer positioned on the tap for temperature adjustment.
• Operating pressure: operation from 1 to 5 bar.
• Controlled flow rate: 3 l/min flow rate through an integrated flow limiter.
• Connection: hot/cold water connection in 3/8″ (12 x 17).
• Drainage: integrated PVC trap.
• Battery-powered NF-certified version (Ref. LMASWENF): powered by a 6 V lithium battery, approximately 3-year service life, CR-P2 type; dimensions 460 x 380 x 524 mm, weight 9 kg.
• Mains-powered version (Ref. LMASWES): electronic control operating on 230 V mains power; dimensions 460 x 380 x 524 mm, weight 9 kg.
• NF certification (Ref. LMASWENF): NF food hygiene mark, certified characteristic: cleanability.

Product benefits

• Enhanced hygiene: electronic control reduces contact with the tapware.
• Comfortable use: the pressed rectangular bowl makes hand and forearm washing easier.
• Controlled consumption: the 3 l/min flow rate helps limit water consumption.
• Choice of power supply: NF-certified battery-powered version or 230 V mains-powered version depending on installation constraints.
• Compact design: ultra-compact electronic tap suited to professional spaces.

Available options

• Plastic soap dispenser (LMDSAV): soap dispenser with 450 ml capacity, dimensions 120 x 100 x 160 mm, weight 0.2 kg.
• Stainless steel soap dispenser (LMDSAVX): stainless steel soap dispenser with 850 ml capacity, dimensions 125 x 110 x 205 mm.
• Folded paper towel dispenser (LMDESS1): dispenser for folded paper towels, dimensions 332 x 135 x 291 mm.
• Stainless steel folded paper towel dispenser (LMDESSi): stainless steel dispenser for folded paper towels, dimensions 280 x 100 x 370 mm.
