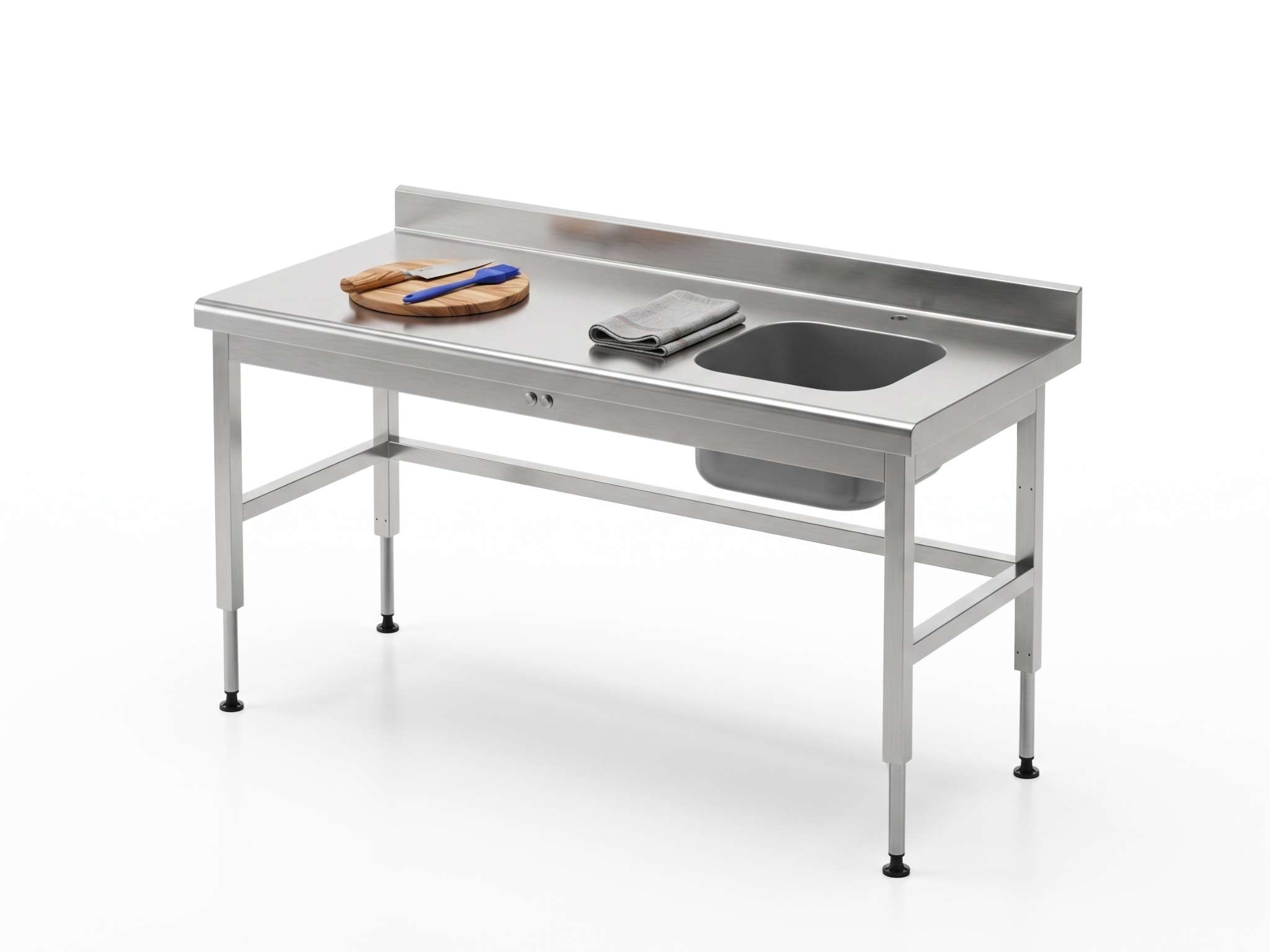

Ajus’table chef’s tables (THVH and THVHP range)

Ajus’table chef’s tables are designed for professional kitchens requiring a height-adjustable stainless steel workstation with an integrated sink bowl. Thanks to their electric adjustment system, they allow the worktop height to be adapted to users, helping improve day-to-day ergonomics.

Technical specifications

• All-stainless steel construction: stainless steel table suited to professional kitchen environments.
• AISI 304L stainless steel top: 15/10 thickness AISI 304L stainless steel top, reinforced by a glued 19 mm water-repellent melamine panel.
• Rounded top: 20 mm radius at the front and rear, with 60 mm downturned edges.
• Integrated stainless steel sink bowl: bowl measuring 400 x 400 x 250 mm.
• Sink bowl position: right-hand or left-hand bowl versions depending on the references.
• Drainage equipment included: supplied with waste fitting, overflow tube and trap.
• Welded base: welded stainless steel tube base, 40 x 40 mm.
• Height adjustment: variable level by actuators with stainless steel rod.
• Adjustment range on feet: height adjustable from 700 to 1100 mm.
• Adjustment range with castors: height adjustable from 825 to 1225 mm with the castor option.
• Electric control: raising and lowering controlled by an electric push button positioned on the front panel.
• Power supply: connects to mains power, single-phase 230 V, 50 or 60 Hz.
• Useful load: 200 kg.
• Robustness: reliability tested over 10,000 cycles.
• Version without PRM option (Refs THVH): available lengths 1600, 1800 and 2000 mm, 700 mm width, weight from 76 to 84 kg.
• Version with PRM option (Refs THVHP): available lengths 1600, 1800 and 2000 mm, 700 mm width.
• PRM option safety: sensitive sensor positioned under the front part of the top; if an obstacle is detected, it stops the downward movement and raises the table by 10 mm.

Product benefits

• Enhanced ergonomics: adjustable height allows the workstation to adapt to user height.
• Complete workstation: stainless steel worktop with integrated sink bowl for professional kitchen preparation.
• Reduced strain: electric adjustment helps users work at the right height without manual effort.
• PRM adaptation: THVHP versions include anti-crushing safety.
• Intuitive use: a simple push-button press changes the table height.
• Professional construction: AISI 304L stainless steel top, rounded edges and welded base for intensive use.

Available options

• Ø 125 mm polyamide castors (…/RP): addition of 4 polyamide castors, including 2 with brakes.
• Ø 125 mm stainless steel castors (…/RX): addition of 4 stainless steel castors, including 2 with brakes.
