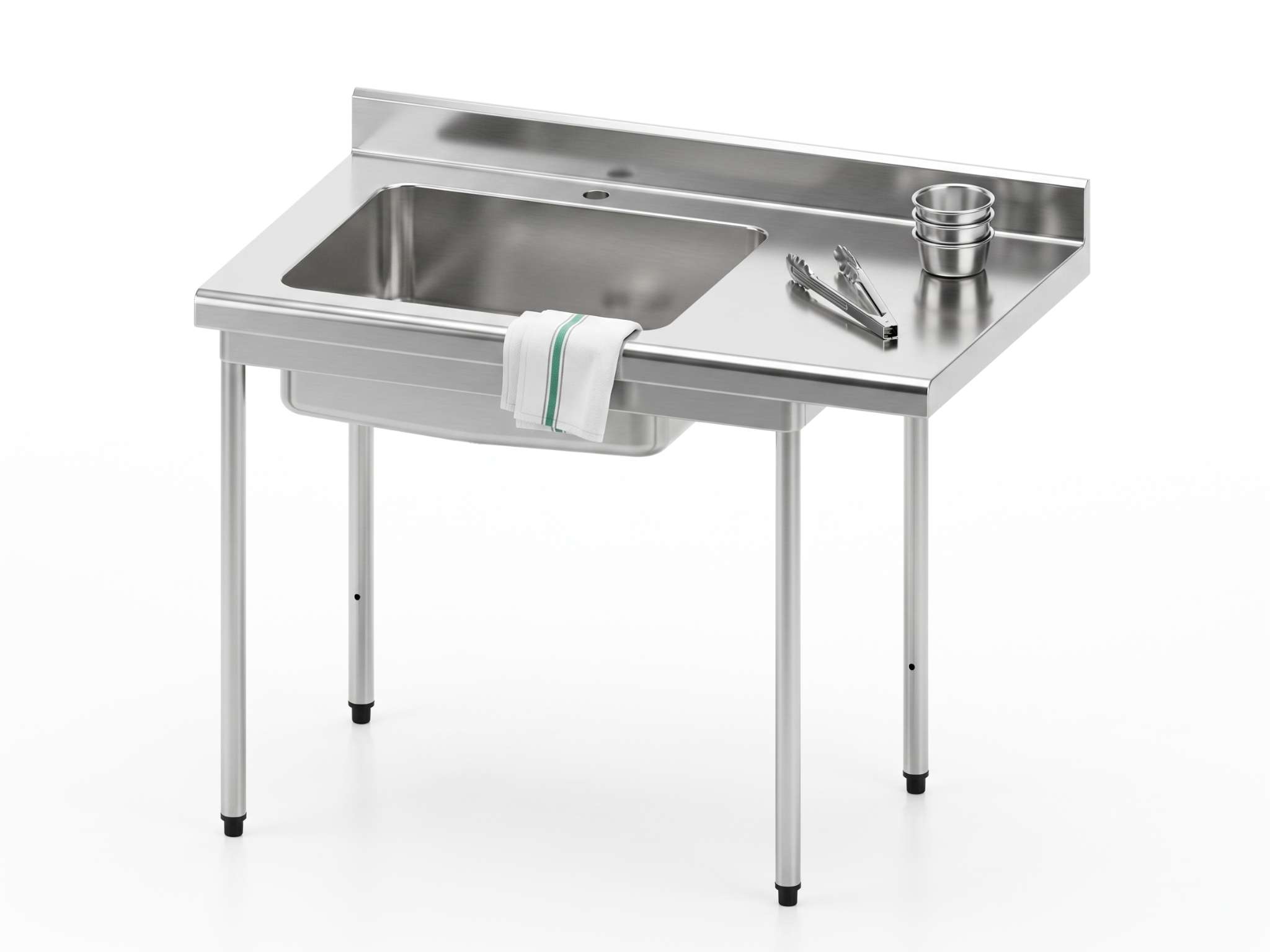

Standard rounded-edge de-canning tables on legs (TAB range)

The standard rounded-edge de-canning tables on legs are designed to hold perforated gastronorm containers for draining canned goods. Thanks to their 304L stainless steel top, pressed bowl and offset legs, they provide a workstation suited to de-canning operations in professional kitchens.

Technical specifications

• 304L stainless steel top: 15/10 thickness 304L stainless steel top, reinforced with a glued 19 mm water-repellent melamine panel.
• Rounded edges: 20 mm rounded edges, 60 mm downstand and welded corners for a finish suited to professional environments.
• Inclined rear backsplash (Refs TAB): rear backsplash closed at the ends, 100 x 20 mm, inclined at 30°, with a 10 mm radius at the base.
• Pressed bowl: bowl designed to hold 2, 3 or 4 GN 1/1 gastronorm containers, with 215 mm depth.
• Drainage: drainage positioned in the corner of the bowl, at the front on the worktop side.
• Worktop: right-hand or left-hand worktop able to receive a can opener, with 200 mm offset.
• Base: Ø 38 mm stainless steel tube legs, on adjustable feet with 30 mm adjustment, connected by 4 stainless steel rails.
• Offset legs: design intended to allow can opener fixing.
• Tap hole: Ø 31 mm tap hole, with tap hole cover available as an option.
• Model for 2 GN 1/1 containers (Refs TAB2CD-TAB2CG): bowl 630 x 510 x 215 mm, dimensions 1200 x 700 mm, weight 39 kg.
• Model for 3 GN 1/1 containers (Refs TAB3CD-TAB3CG): bowl 960 x 510 x 215 mm, dimensions 1500 x 700 mm, weight 47 kg.
• Model for 4 GN 1/1 containers (Refs TAB4CD-TAB4CG): bowl 1290 x 510 x 215 mm, dimensions 1800 x 700 mm, weight 56 kg.
• Bowl position: right-hand or left-hand bowl versions depending on the references.
• Working height: 900 mm height.

Product benefits

• Dedicated de-canning workstation: design intended for draining canned goods in perforated gastronorm containers.
• Easier can opener fitting: offset legs and 200 mm worktop offset.
• Enhanced hygiene: 304L stainless steel top, rounded edges and welded corners.
• Choice of capacity: models available to hold 2, 3 or 4 GN 1/1 containers.
• Flexible layout: right-hand or left-hand bowl versions to suit the working direction.

Available options

• Rounded lower shelf (EGA710, EGA712, EGA716): rounded lower shelf available depending on table length.
• Stainless steel adjustable feet (…/X): option to add 4 stainless steel adjustable feet to the reference.
• Stainless steel castors (…/RX): option to add 4 Ø 125 mm stainless steel castors, including 2 with brakes.
• Polyamide castors (…/RP): option to add 4 Ø 125 mm polyamide castors, including 2 with brakes.
• Polyamide semi-mobile option (…/SMP): option to add 2 polyamide castors without brakes and 2 ABS adjustable feet.
• Stainless steel semi-mobile option (…/SMX): option to add 2 stainless steel castors without brakes and 2 stainless steel adjustable feet.
• Special-height legs (…/SPHT): option available for worktop height up to 1050 mm maximum; the required equipment height must be specified when ordering.
• Lower crossbars (TRAV): lower side and longitudinal crossbars, U-shaped or H-shaped to be specified when ordering.
• Welded legs (SPSOUD): option to weld the 4 legs to the support rails.
• Three-sided stainless steel cladding (TOP14): bowl cover available for standard de-canning table on 4 legs.
• Rear backsplash closure (TFD): rear backsplash closure available as an option.
• Right add-on side backsplash for 700 mm width (TTDR710AD): welded and siliconed add-on side backsplash, open at the rear.
• Left add-on side backsplash for 700 mm width (TTDR710AG): welded and siliconed add-on side backsplash, open at the rear.
• Rear stops (TTBA2): 2 AISI 304L stainless steel tube rear stops, with black ABS end caps and 35 mm space between backsplash and wall.
• Corner stops (TTCPC4): set of 4 rubber corner stops fitted to the table corners. For tables with backsplash, option TFD must also be provided.
• Rubber scraper/flap (OPBAV): rubber scraper or flap fixed to the table for clearing plates.
• Table without tap hole (SPST): configuration without tap hole available as an option.
• Table with 2 tap holes (SPBT): configuration with 2 tap holes available as an option.
• Chrome tap hole cover (CT50): chrome tap hole cover available for the tap hole.
